SUNSYNK 8KW HYBRID PV INVERTER 48V IP65 + WIFI DON
R28,700.00 Incl Vat
SUNSYNK 16KW SINGLE PHASE INVERTER
R53,500.00 Incl Vat

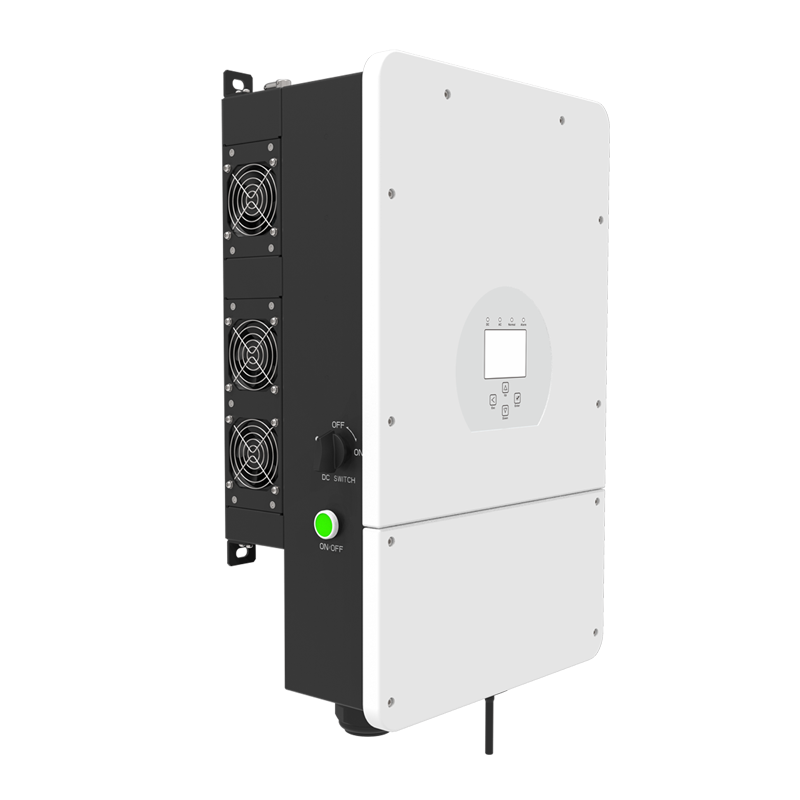

SUNSYNK 12KW 3P HYBRID PV INVERTER 48V IP65 + WIFI
R40,800.00 Incl Vat
- Inverter Type: Off Grid Inverter
- Input Power: 15600W
- Rated AC Power: 13200W
- Warranty: 5 Years
Maya / Pre-sale Questions
Need Help? Contact Us via WhatsApp
Description
Higer yields.
- Improve self-consumption ratio up to 80%, reducing your electricity bill.
- DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
- Two MPPT design, Max. efficiency of 97.6%.
User-friendly.
- LCD Touch screen and buttons, easy operation.
- Compatible with lithium-ion battery and lead acid battery.
- Web browser and mobile App monitoring supported.
Reliable.
- PV lighting protection, Anti-islanding protection, Leakage current protection etc.
- Support store energy from DG when needed, ensure the system working within 7*24H.
- IP65 protection degree, adapt to indoor and outdoor using.
- Automatically switch from on-grid to off-grid mode within 5ms.
- Zero exporting function, fast reaction within 200ms in zero export mode.
Smart.
- Programmable charging and discharging schedule.
- Both wind turbines and solar panels can be connected as DC input power.
- Max. 16 units can be paralleled for higher system power.
- Retrofitting of existing solar system to energy storage system.
Features:
- 100% unbalanced output, each phase Max. output up to 50% rated power.
- 48V low voltage battery, transformer isolation design.
- 6 time periods for battery charging/discharging.
- Max. charging/discharging current of 240A.
- Frequency droop control.
- DC couple and AC couple to retrofit existing solar system.
- Support storing energy from diesel generator
- 100% unbalanced output, each phase Max. output up to 50% rated power.
- 48V low voltage battery, transformer isolation design.
- 6 time periods for battery charging/discharging.
- Max. charging/discharging current of 240A.
- Frequency droop control.
- DC couple and AC couple to retrofit existing solar system.
- Support storing energy from diesel generator
Specifications
| PV String Input Data | Max. DC Input Power (W): 15600W. | PV input Voltage (V): 550V (150V-800V). | MPPT Range (V): 200-650V | Start-up Voltage (V): 160V | PV Input Current (A): 25A + 125.5A | No. of MPPT Trackers: 2 |
|---|---|---|---|---|---|---|
| AC Output Data | Rated AC Output and UPS Power (W): 12000W | Max AC Output Power (W): 13200W | Peak Power(off-grid): 2 times of rated power, 10 S | AC Output Rated Current(A): 18A | Max.AC Current(A): 27A | Max Continuous AC Pass-through(A): 50A |
| Efficiency | Max. Efficiency: 97.60% | Euro Efficiency: 97.00% | MPPT Efficiency: 99.90% | |||
| Protection | PV Arc Fault Detection: Integrated (Except European Type) | PV Input Lightning Protection: Integrated | Anti -islanding Protection: Integrated | PV String Input Reverse Polarity Protection: Integrated | Insulation Resistor Detection: Integrated | Residual Current Monitoring Unit: Integrated |
| Certifications and Standards | Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727 | Safety Regulation: IEC62109-1, IEC62109-2 | EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B | |||
| General Data | Operating Temperature Range ( C ): -25—60 C , >45 C Derating | Cooling: Fan | Noise (dB): <30 | Communication with BMS: RS485; CAN | Weight (kg): 37 | Size (mm): 422W X 685H X 281mm |
Documents
Additional information
| Weight | 32 kg |
|---|---|
| Dimensions | 68 × 42 × 24 cm |
| Brand | SunSynk |
