- Nominal Wh 2840
- 6000 Cycles at 80%
- The solar battery is ONLY Compatible with 24V Voltronic inverters
- Comes with CAN communication.
- RS485 communication supports Voltronic 24V inverter
- CANÂ communication supports Victron 24V inverter
- Supports a maximum of 20 pcs in parallel connection
- Key battery parameters setting:
- Charging cut off voltage point: 28.4VDC
- Discharging cut off voltage point: 24.8VDC
- Recommend charge/discharge current = 55A * NÂ (N=Number of parallel batteries)
- Other settings are basically the same as the 48V system
JA SOLAR 540W BI-FACIAL N-TYPE SOLAR
R1,680.00 Incl Vat
PYLON CABINET UP5000- 2G – 2 BATTERIES
R3,801.90 Incl Vat

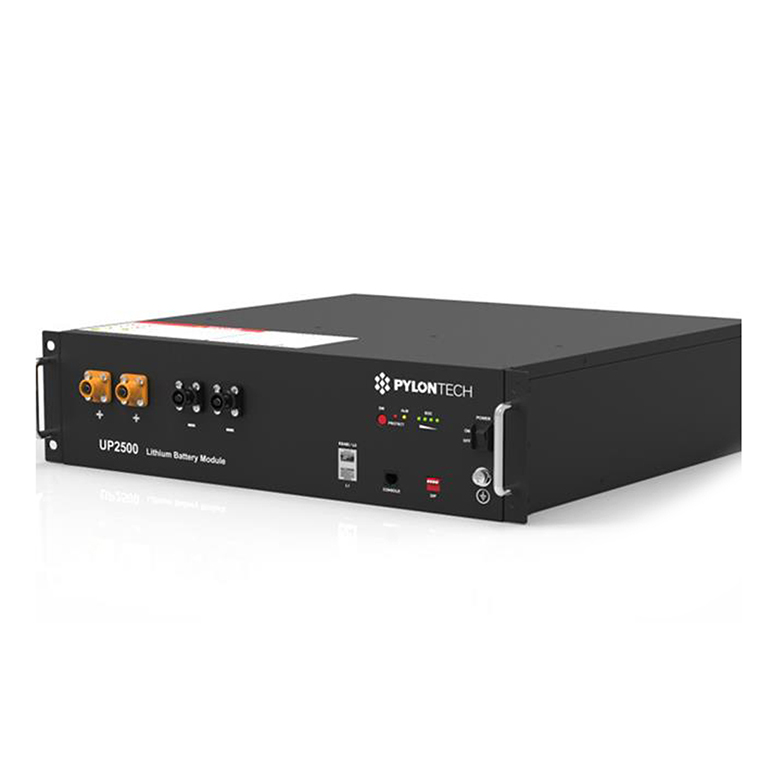

PYLON Battery UP2500 2.4Kwh 24V
R11,800.00 Incl Vat
- Battery Type: Lithium Battery
- Nominal Voltage: 25.6V
- Max. Charging: 56A
- Warranty: 5 Years
Maya / Pre-sale Questions
Need Help? Contact Us via WhatsApp
Description
Specifications
| Nominal Voltage(V) | Â 25.6 |
|---|---|
| Nominal Capacity(Wh) | 2840 |
| Usable Capacity(Wh) | 2550 |
| Dimension(W*H*D, mm) | Â 442*420*119 |
| Weight(Kg) | Â 27.5 |
| Discharge Voltage(V) | 23~28.8 |
| Charge Voltage(V) | Â 28.2~28.8 |
| Charge/Discharge Current(A) | 56(continuous) 111 (Peak@15s) |
| Communication Port | RS485 |
| Working Temperature(℃) |  0~50 |
| Shelf Temperature(℃) | -20~60 |
| Humidity | 5%~90% |
| Authentication level | Â IEC62619/RoHS/UN38.3 |
Documents
Additional information
| Weight | 27 kg |
|---|---|
| Dimensions | 44.2 × 42 × 12 cm |
| Brand |
Pylontech |
