DEYE 8Kw 1P HYBRID INVERTER 48V + WIFI
R20,000.00 Incl Vat
This Deye 8kW Hybrid Inverter supports both lithium-ion and lead-acid batteries while delivering fast charging and excellent PV performance.
- Battery voltage range: 40–60V.
- Max charging/discharging current: 190A.
- Li-ion charging strategy: Self-adaptive to BMS.
- Max PV input power: 16,000W.
- MPPT trackers: 2 | 2+2 strings.
- MPPT efficiency: >99%.
- Rated PV voltage: 370V.
Maya / Pre-sale Questions
Need Help? Contact Us via WhatsApp
Description

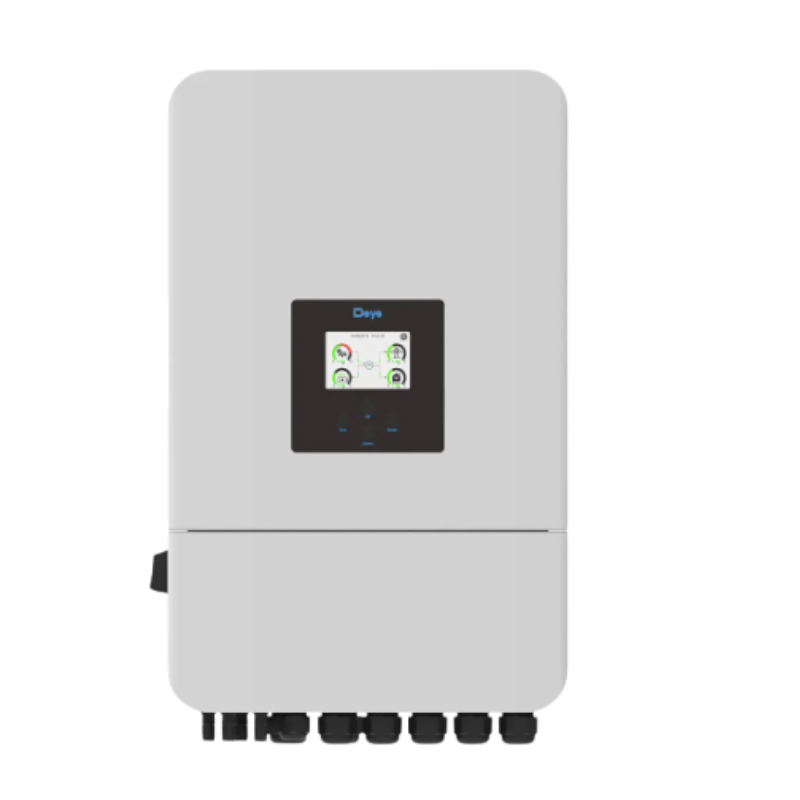

Deye 8KW Hybrid Inverter
Includes: Wi-Fi Dongle + BMS Communication Cable
Higher yields / Safe & Reliable / Smart / User-friendly
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
- Colorful touch LCD, IP65 protection degree
-
AC couple to retrofifit existing solar system
-
Max. 16 pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
-
Max. charging/discharging current of 190A
-
6 time periods for battery charging/discharging
-
Support storing energy from diesel generator
Battery Input Data
- Battery Type: Lead-acid or Li-lon
- Battery Voltage Range (V): 40-60V
- Max. Charging Current (A): 190A
- Max. Discharging Current (A): 190A
- Charging Strategy for Li-ion Battery: Self-adaption to BMS
- External Temperature Sensor: Optional
- Number of battery input: 1
Specifications
Battery Input Data
- Battery Type: Lead-acid or Li-lon
- Battery Voltage Range (V): 40-60V
- Max. Charging Current (A): 190A
- Max. Discharging Current (A): 190A
- Charging curve: 3 Stages/Equalization
- External Temperature Sensor: Optional
- Charging Strategy for Lithium Battery: Self-adaption to BMS
PV String Input Data
- Max. DC Input Power (W): 10400W.
- PV input Voltage (V): 370V (100V-500V).
- MPPT Range (V): 125-425V.
- Start-up Voltage (V): 150V.
- PV Input Current (A): 18A + 18A.
- No. of MPPT Trackers: 2
- No. of Strings Per MPPT Tracker: 2+2.
AC Output Data
- Rated AC Output and UPS Power (W): 8000W
- Max AC Output Power (W): 8800W
- Peak Power(off-grid): 2 times of rated power, 10 S.
- AC Output Rated Current(A): 33.4A/35A
- Max.AC Current(A): 38.3A/40A.
- Max Continuous AC Pass-through(A): 50A.
- Output Frequency and Voltage: 50/60Hz; 120/240Vac(split phase), 208Vac(2/3 phase), 230Vac(single phase)
- Grid Type: THD<3%(Linear load<1.5%).
- Current Harmonic Distortion: THD<3% (Linear load<1.5%).
Efficiency
- Max. Efficiency: 97.60%
- Euro Efficiency: 97.00%
- MPPT Efficiency: 99.90%
Protection
- PV Arc Fault Detection: Integrated (Except European Type)
- PV Input Lightning Protection: Integrated
- Anti -islanding Protection: Integrated
- PV String Input Reverse Polarity Protection: Integrated
- Insulation Resistor Detection: Integrated
- Residual Current Monitoring Unit: Integrated
- Output over Current Protection: Integrated
- Output Shorted Protection: Integrated
- Output over Voltage Protection: Integrated
Certifications and Standards
- Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
- Safety Regulation: IEC62109-1, IEC62109-2
- EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B
General Data
- Operating Temperature Range ( C ): -25—60 C , >45 C Derating
- Cooling: Fan
- Noise (dB): <30
- Communication with BMS: RS485; CAN
- Weight (kg): 32
- Size (mm): 680 X 4200 X 233mm
- Protection Degree: IP65
- Installation Style: Wall-mounted
- Warranty: 5 years
Additional information
| Weight | 32 kg |
|---|---|
| Dimensions | 68 × 420 × 23 cm |
| Brand | SunSynk |
