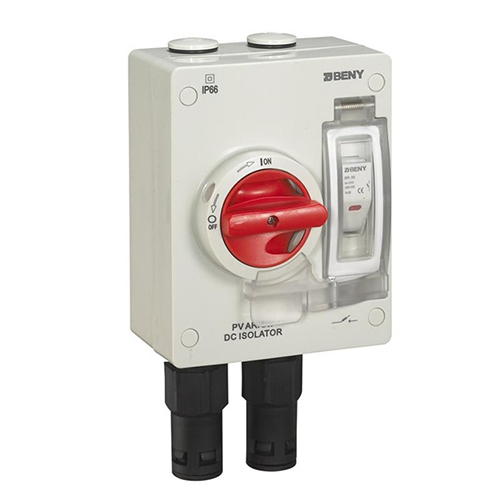

Zjbeny DC Isolator 1200v 4P + Fuse
BHTR-32 is a 1200V 32A DC isolator for solar PV application.
With 1000V fuse for over current protection,current range from 10A to 30A
Pre-wired DC Switch with ast Connector(Option) Ip66, UV Resistance and Flame Retarded Enclosure
Non-polarity
Arcing Time < 3ms
“OFF” Position Lockable
Earth Terminal
IEC/EN 60947-3
2 Pole, 4 Poles Available( Single | Double String)
DC-21B
32A up to 1000VDC
